Best quality 4 pon port Gpon Epon Fiber Optic Olt with layer2 switching

FOB Reference Price:Get Latest Price
US $300-390 / Pieces | 1 Piece/Pieces 4 pon port Gpon Epon Fiber Optic Olt with layer2 switch (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
APTTEK
Model Number:
APT104 OLT FIBER OPTIC
Type:
OLT FIBER OPTIC
Application:
FAST ETHERNET Network
Fiber Type:
9/125μm single module fiber
sfp slots:
1000BASE-PX20
Wavelength:
Rx 1490nm/TX 1310nm
Dimension:
442mm*230mm*44mm
Material:
Metal
OEM:
Yes
Distance:
20KM
SupplyAbility
SupplyAbility:
3000 Piece/Pieces per Month 4 pon port Gpon Epon Fiber Optic Olt with layer2 switch
Packaging & Delivery
Packaging Details
1piece for 1 carton box
2 pearl cottons in for protecting epon olt
Best quality 4 pon port Gpon Epon Fiber Optic Olt with layer2 switching
Port
Shenzhen
Lead Time :
3 days for samples
Product Description


Best quality 4 pon port Gpon Epon Fiber Optic Olt with layer2 switching



APTTEK fiber optic olt has very high cost performance ratio, it fulfills the standard IEEE 802.3ahprotocol's requirements and support China Telecom Epon device technical requirments' V2.0, V2.1 and V2.3 standard. It allows different brands of ONU to connect.

The FTTB or FTTH optical network can be constructed by collocation of ONU and ODN. This epon olt device could be used in residence block's internet,communication and monitoring area.

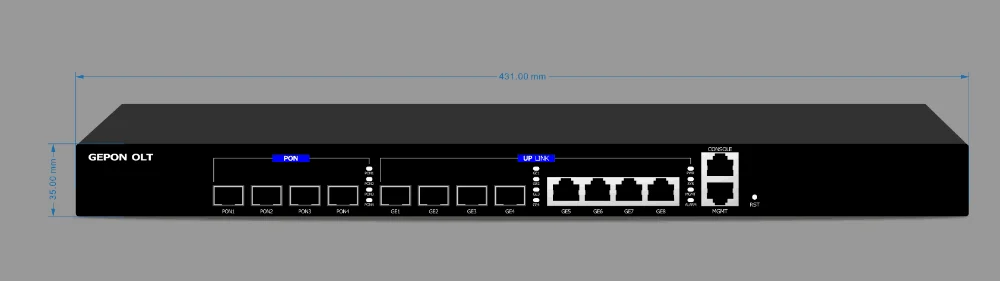

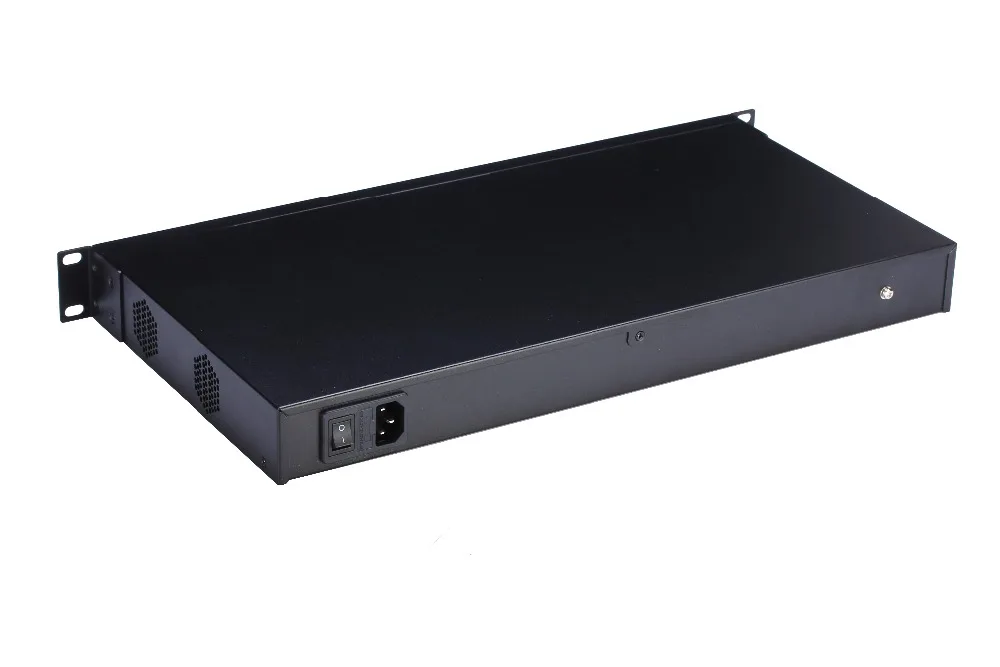

It used 19inches 1U standard chassis, front-back outlet, supporting AC100--240V power input, intergrative front business and management port, post placed power.








Features show below:





                Power
chassis
19inch,1U rack
Input power range
100V~240V AC
Power consumption
36W
Support switch or not
Support switch with circuit breaker




        Environments
Temperature
-25~50ºC(Long period)
Humidity
5~95% (No condensation)
Storage temperature
-40~85ºC
Storage humidity
5~95% (No condensation)
Atmospheric pressure
86 ~106 kpa
Particle size of dust
Diameter > 5μm, <3*104pcs/m3





    Switching features
Backplane bandwidth
48Gbps
Maximum MAC addressing table entry
16K
VLAN maximum number
4K
Maximum multicast group number
1024
Maximum ACL entry number
32

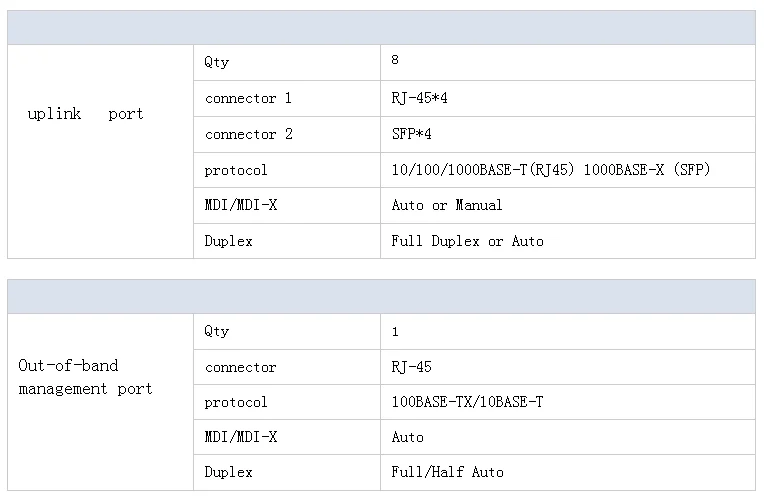

Port number
4 optical 4 electrical
Main optical fiber protecting port
Randomly specify GE1-GE8
Connector
SFP plug,SC socket




PON System of fiber optic olt features:



1) Support DBA dynamic bandwidth distribution
2) Support ACL access control lists
3) PON port isolated from each other
4)Support traffic storm control
5) Support ONU interworking for the same port
6) Support up-down line alarming
7) Support olt power checking, ONU ranging
8) Support ONU certificating
9) Support addressing list management
Etc.




Layer 2 Switching features:


1) Support IEE 802.1q VLAN, capacity is 4k
2) Support multicast management ( IGMP-Snooping V1/V2/V3 and Proxy)
3) Support port-isolated group configuration
4) Support port traffic storm suppression
5) Support port-mirroring
6) Support Ethernet-Ring ring protection (<20 MS) and RSTP
7) Support addressing list management
8) Support Qos
Etc.

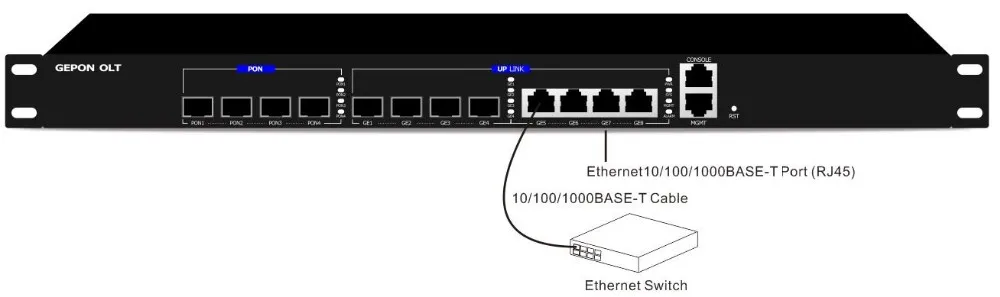

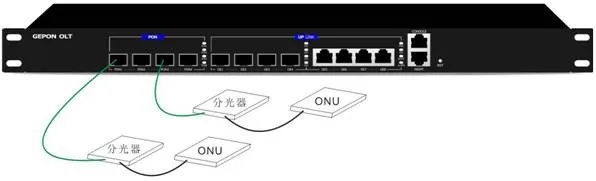

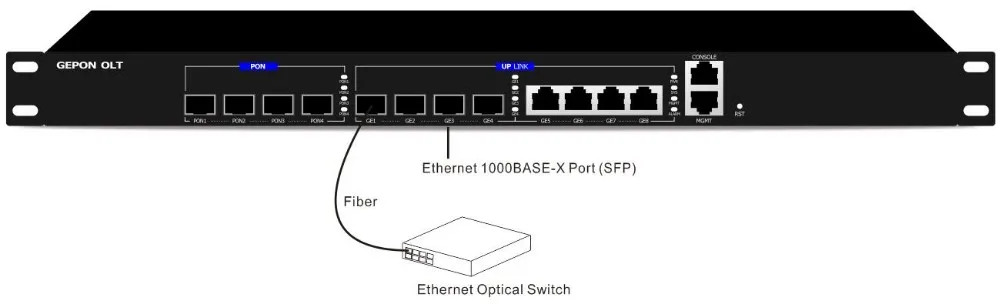

Application Images
Packing & Delivery


Best quality 4 pon port Gpon Epon Fiber Optic Olt with layer2 switching




Packaging Details:


1) fiber optic olt device 1pcs
2) Light Disk 1pcs
3) RS232 serial port line 1pcs
4) Power line 1pcs
5) Warranty Card 1pcs




Delivery Detail:


3days for samples olt fiber optic olt

Our Company



APT Prosper Technology Co.,Ltd


APTTEK has been found in 2004, which is located in Shenzhen, China. We are a high-tech enterprise and specialized in research, production, marketing and service of optical communication equipment. With our independent brand APTTEK, the main products include: Gepon Olt, Gepon Onu, Ethernet media converter, Ethernet Switch, Rack mount, digital video optical transceiver, optical module etc.

Our operation are strictly according to the ISO9001:2008 quality control system, CCC, CE standard, to ensure the quality and to make progress.

We provide service and management with the purpose of "mutual benefits" and the mission of " skill in quality, specialized in service", offering the best service and exquisite products to our honored customers.

Certifications
Our Service



1)Standard and customized OEM products from small to large quantity are welcome.

2)Compliance with global environmental industry with RoHS and SGS standards.

3)All products are 100% fully tested by our technical expertise.

FAQ



Q1 . What your MOQ?
A1 .1 pcs is ok,whatever how many you need,and we will also give you the best service.


Q2.What certification did you get?
A2 : Our product strictly operate the ISO9001:2008 quality control system and we passed the CE,CCC,ROHS and SGS test,you can trust us.


Q3 :What about your package and delivery,will it broke during shipping?
A3:You don't need to worry about the package,we will use shockproof case for delivering.


Q4.What your common delivery way?
A4:By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.


Q5.Tell me some detail about warrant time.
A5:We give you the promise if any question during 1 year and not cause by human factors,we will fix it.
