1GE CATV WIFI gpon onu gpon terminal for ftth solution

FOB Reference Price:Get Latest Price
US $10-18 / Pieces | 1 Piece/Pieces 1GE CATV WIFI gpon onu gpon terminal for ftth solution (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
APTTEK
Model Number:
AP210
Application:
FTTH
Optical interface:
1GE pon port
Wavelength:
Tx 1310nm,Rx 1490nm
Power supply:
12V DC
Power consumption:
6W
Working temperature:
0~55℃
Storage temperature:
-30~60℃
Relative humidity:
10~90% (non-condensing)
Dimension:
102mm(L) x 45mm(W) x45mm(H)
Function:
catv + wifi
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month 1GE CATV WIFI gpon onu gpon terminal for ftth solution
Packaging & Delivery
Packaging Details
Main body *1
Manual *1
Charger * 1
Warranty card *1
1GE CATV WIFI gpon onu gpon terminal for ftth solution
All this in a carton case
Port
Shenzhen
Lead Time :
3days for samples order 1GE CATV WIFI gpon onu gpon terminal
Product Description

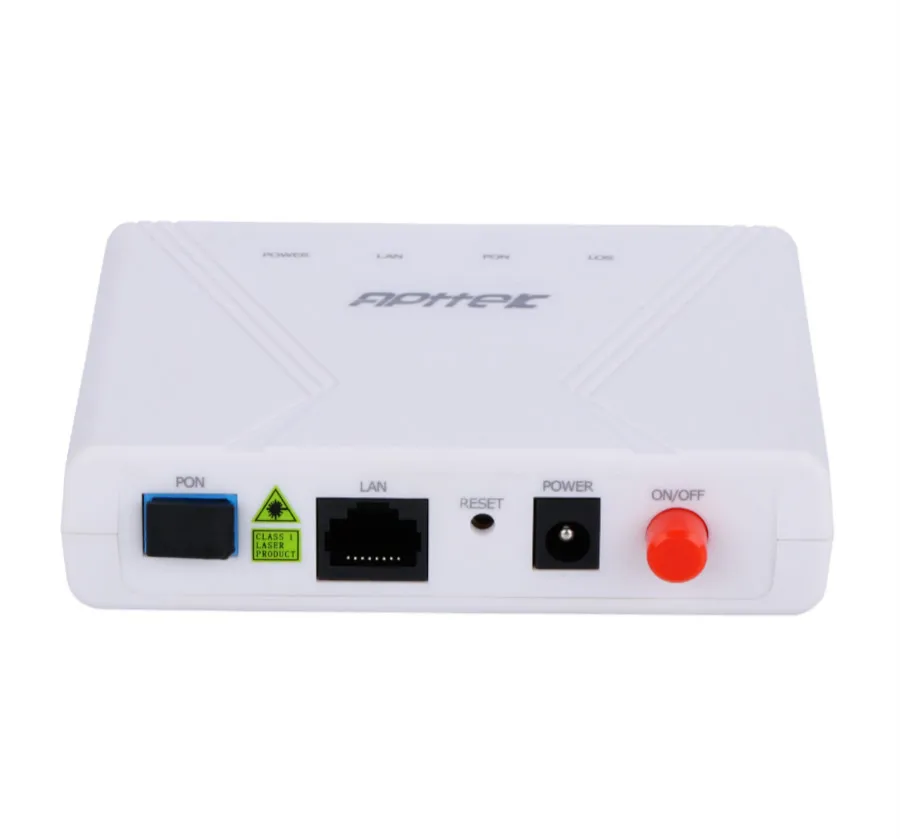

1GE CATV WIFI gpon onu gpon terminal for ftth solution



AP210 is designed for fulfilling FTTH (Fiber To The Home) and triple play service demand of fixed network operators. It is developed wholly by APT Prosper. The box is based on the mature Gigabit GPON technology, which has high ratio of performance to price, and high quality VoIP as well. It is highly reliable and easy to maintain, with guaranteed QOS for different service. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom.

features:


1. Conform to IEEE802.3ah standard
2. Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
3. Support frame filtering and suppression
4. Support standard 802.1Q Vlan function, support VLAN conversion
5. Support 4094 VLANs (802.1Q)
6.Support Dynamic Bandwidth Allocation (DBA) function
7. Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc
8. Single ONU supports up to 1 LLID.
9. Support IGMP Snooping
10. Support Ethernet port ratelimit loop detection
11.Support power failure alarm
12. Support lightning protection for power supply and lightning protection for service port






           PON      port
Downstream rate 1.25Gbps,  Upstream rate 1.25Gbps
Transmission distance:   20KM
RX sensitivity:   ≤ -28dBm
Transmited light power :  ≥0.5dBm




              Protocol
ITU-T G.984.2, G.984.3, G.984.4, IEEE 802.3ah
YD/T 1475-2006
IEEE 802.1D,Spanning tree protocol
IEEE 802.1Q, VLAN
IEEE 802.1w, RSTP
IEEE 802.3ad (LACP)
Ethernet–II, Ethernet-SNAP

                    VLAN
VLAN based on port
GVRP
IEEE 802.1Q VLAN


         Environment
Working temperature: -5℃~50℃
Relative humidity: 10%~85% (non-condensing)
Storage temperature:  -40℃~80℃
Relative humidity:  5%~95%  (non-condensing)

                         Power
Input:  110~240V             output: 12V/0.5A
interface Type: SC
Size : 2.0mm
        Power consumption
 2.5W

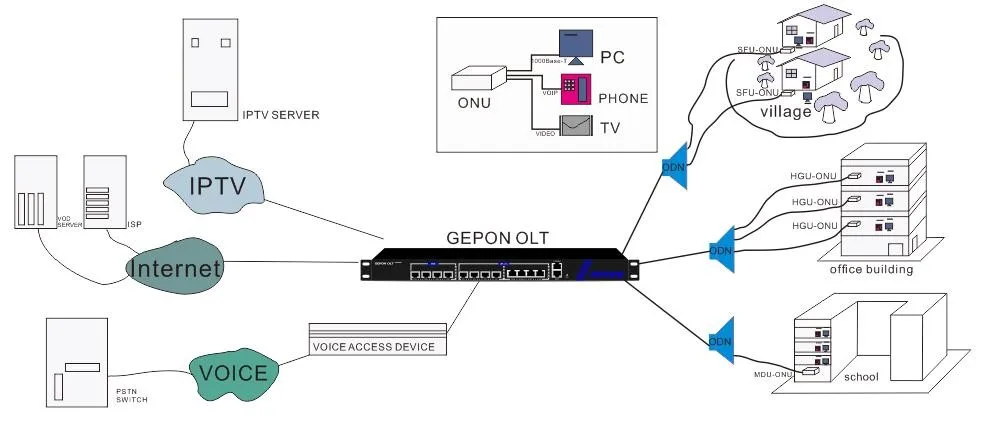

Solution
Packing & Delivery

Packing

Main body *1
Manual *1
Charger * 1
Warranty card *1
All this in a carton case

Our Company

APT Prosper Technology Co.,Ltd


APTTEK has been found in 2004, which is located in Shenzhen, China. We are a high-tech enterprise and specialized in research, production, marketing and service of optical communication equipment. With our independent brand APTTEK, the main products include: Gepon Olt, Gepon Onu, Ethernet media converter, Ethernet Switch, Rack mount, digital video optical transceiver, optical module etc.

Our operation are strictly according to the ISO9001:2008 quality control system, CCC, CE standard, to ensure the quality and to make progress.

We provide service and management with the purpose of "mutual benefits" and the mission of " skill in quality, specialized in service", offering the best service and exquisite products to our honored customers.

Certifications
Our Service

1)Standard and customized OEM products from small to large quantity are welcome.
2)Compliance with global environmental industry with RoHS and SGS standards.
3)All products are 100% fully tested by our technical expertise.

FAQ

Q1 . What your MOQ?
A1 .1 pcs is ok,whatever how many you need,and we will also give you the best service.

Q2.What certification did you get?
A2 : Our product strictly operate the ISO9001:2008 quality control system and we passed the CE,CCC,ROHS and SGS test,you can trust us.

Q3 :What about your package and delivery,will it broke during shipping?
A3:You don't need to worry about the package,we will use shockproof case for delivering.

Q4.What your common delivery way?
A4:By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.

Q5.Tell me some detail about warrant time.
A5:We give you the promise if any question during 1 year and not cause by human factors,we will fix it.
